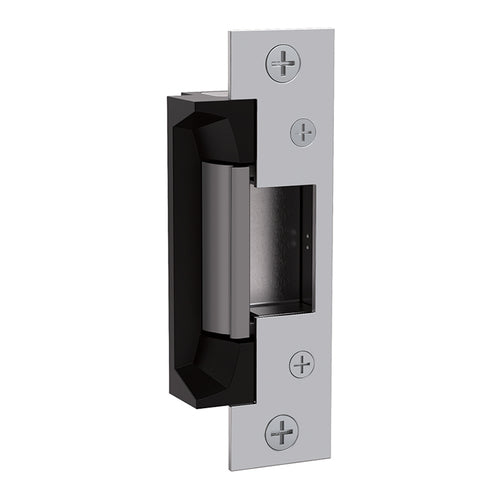

New Assa Abloy HES 5200 Series Electric Strike Body Only! Retails $266+
The hes 5200 Series Universal Electric Strike is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. The field selectable fail secure/fail safe unit is easy to install.
The hes 5200 strike has a satin stainless steel finish (630) and accommodates 3/4" latch bolts. It also has 12VDC or 24VDC options for continuous duty.
HES 5200 Strike Face Plates
501 Face Plate, 4-7/8" x 1-1/4". For ANSI jamb prep. Does not require removal of the dust box.
501A Face Plate, 4-7/8" x 1-1/4". 1/8" Radius corners for installation in aluminum jambs. Includes universal mounting tabs.
Specification Data:
- UL 1034, burglary-resistant listed.
- ANSI/BHMA A156.31, Grade 1.
Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only
Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.
The 5200 series electric strike features an in-frame horizontal adjustable design to simplify the installation process. This features allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to a 3/4" throw. The 5200 is also available in a Complete Pac which pairs the strike body with the faceplates and mounting hardware all in one simple convenient package.
- UL 1034 burglary-resistant listed and suitable for outdoor use
- ANSI/BHMA A156.31, Grade 1
- MEA New York City accepted
- Patent #5,934,720
Use With
Cylindrical Locks
Package Volume
79.734375
Amp Draw
.24 @ 12V .12 @ 24V
Keeper Size
3/4 In.
Function
Electrically Unlocked (Fail Secure)
Grade
Grade 1
Fire Rated
No
Configuration
Centered
Operating Voltage
12VDC/24VDC
Application
Multi-Application
Package Qty
1
Package Height
2.25"
Origin
USA
Holding Force
1500
BAA Qualified
Yes
Package Length
10.5"
Frame Application
Metal or Wood
Product Type
5000 Series
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
