NEW CAMWAY 4K HDMI Audio Extractor HDMI to HDMI Optical TOSLINK SPDIF and 3.5mm Analog Stereo Audio Converter HDMI Audio Splitter Adapter Support 3D for Apple TV Blu-ray Player
- 4K HDMI Audio Extractor】 HDMI to HDMI SPDIF + 3.5mm Audio Converter, One HDMI Input Convert to one HDMI + Audio (SPDIF+3.5mm Audio) Output.
- 【3 Audio Mode Options】 With 2.0CH, 5.1CH and 7.1CH three audio mode options, Analog 3.5mm Output Supports 2CH PCM Stereo Audio, SPDIF output supports 2CH PCM, 5.1CH Dolby Digital, DTS (Dolby Digital Plus not Supported), HDMI output supports 7.1CH.
- 【4K High HDMI Resolution】 Supports HDCP 1.4 and 3D, input resolution up to Ultra HD 4K@30hz, also compatible with 1080p@60/50Hz/ 1080i/720p/ 576i/ 480p/ 480i. (NOT Support HDCP 2.2 and 4K@60Hz)
- 【High Quality with 3 feet HDMI Cable】 Aluminum alloy material is useful to reduce signal loss and get a better output signal. (Note: HDMI audio extractor cann't be used with other converter, such as HDMI to DVI Converter.)

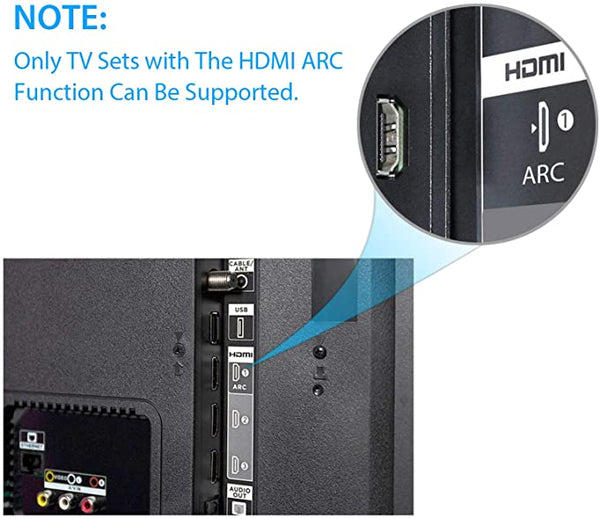

- 【Supports HDMI ARC Function】 HDMI audio return channel fuction is available from the HDMI to optical output,Not for the 3.5mm audio output（Please sure your HDTV Has HDMI(ARC) Port）
1.HDMI to 4K HDMI Audio Extractor +Audio Decoder+ 3 Audio Mode Options + 4K High HDMI Resolution + Supports HDMI ARC+ 3 feet HDMI Cable +Aluminum Shell of CNC process Material +ESD Protection
2..Compatible with HDMI 1.4a
3. Support 3D video & 4kx2k/30HZ, 8,10,12&16 bits per color depth + PCM2,5.1, 7 .1, Dolby 5.1,DTS5.1, D-TrueHD, DTS-HD+HDMI ARC fuction
4. CEC function, connect TV HDMI ARC to fiber-optic audio equipment.
Specification:
Input : 1 x HDMI(Female type)
Output Video: 1 x HDMI(Female type)
Output Audio: 1 x Toslink, 1 x 3.5mm Jack
Toslink support: ARC Function
HDMI Audio Output: PCM2, 5.1,7.1CH,Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
ESD Protection：Human Body Model: ±8kv(air –gap discharge) ±4kv (contact charge)
Video Resolution:Up to 4KX2K/30HZ
Operating Temperature:0℃ to 40 ℃/32℉ to 104℉
Storage Temperature: -20℃to 60 ℃/-4℉ to 104℉
Dimensions: 80mm x 80mm x19mm
Power Supply: 5V/1A DC
Note:
1.If source device is 4K@60hz(HDMI 2.0 and HDCP2.2),please set up resolution to 4K@30hz or 1080p@60hz to use the HDMI Audio Extractor.
How to set resolution to fit our HDMI Audio Extractor:
a). Connect "4k@60hz HDMI 2.0 input device" directly to TV
b). Then"setting-picture-resolution(choose "Auto")-"HDMI Color Fomat"(choose "Auto")
2. Not compatible with Netflix & YouTube video websites.
3. When select to 5.1 Channel mode, the spdif out will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio:
a). If contain, SPDIF OUT interface will output 5.1 channel audio signal while STEREO OUT interface output nothing.
b). If not contain, SPDIF OUT&AUDIO OUT interface are all output 2 channel audio signal.
4. Can NOT be used with other converter, such as HDMI to DVI Converter.
Package:
1 x HDMI Audio Extractor
1 x 1m HDMI Cable
1 x 3.5mm to 2 RCA Cable
1 x USB Cable
