New RCA Switcher AV Switch Box 4 in 1 Out, MT-ViKI 431AV 4 Way AV Switcher Composite Video L/R Audio Selector Box for DVD STB Game Consoles 4 Port
- ►4-way AV RCA Audio Video Switcher Selector for XBOX DVD PS2 PS3 Wii Cable Box to TV's yellow-white-red RCA connectors
- ►Mechanical design, simple push-button switching
- ►Metal enclosure, excellent stability and longevity
- ►Easy installation and operation, no extra power supply or software drive needed
- ►Support devices with A/V connection, provide clean video and audio

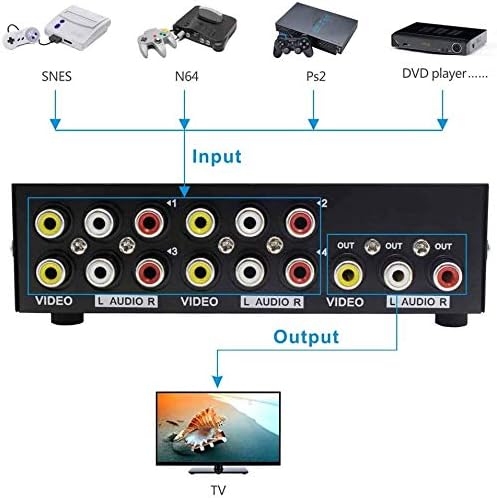

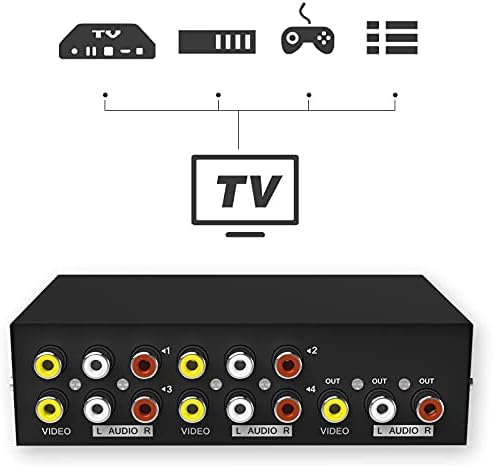

MT-431AV AV switch allows you to connect multiple video devices with AV out (such as Wii, XBOX, DVD, PS2, Cable Box) to one set of standard yellow-white-red RCA connectors of your TV using AV cables. Then you will be able to easily switch the input signal without the need to disconnect and re-connect your AV devices.
Specifications:
1. Video
● Input level Resistance: VS 0.8-1.0Vp-p/75Ω
● Output level Resistance: VS 0.8-1.0Vp-p/75Ω
● Bandwidth: 50Hz-5.5MHz
● Input Connector: 4
● Output Connector: 1
2. Audio
● Input level Resistance: 2V(RMS)/47KΩ
● Output level Resistance: 2V(RMS)/1KΩ
● Frequency: 10Hz-20KHz，0db
● Input Connector: 4 (R+L)
● Output Connector: 1 (R+L)
● Switch: Manual
● Enclosure: Metal
