New Solar Generator with Panels | Solar System with 6000W Inverter and Panels - Complete Solar System with Battery and Inverter for Home House Shed Farm RV Boats Cevan
- ♫【High-Inverter】The surge of the Solar system is 6000W, and the inverter provides a lighter and 2 battery clips for free, providing 500W continuous and 6000W peaks .
- ♫【Dual USB Ports】Dual USB ports can charge most phones and tablets at the same time (max 4.1A), while the AC outlet is perfect for laptops, drones, fans, cameras, and game consoles, TV, players, lights, RVs and other electronic devices.
- ♫【Learn The Voltage In Real Time】The micro-control unit liquid crystal display portable stations can grasp the inverter's operational state in real-time and can show the input voltage, output voltage, output frequency, battery level, load, / off lights,
- ♫【High Temperature Symbol Reminder】The Solar Panel Kit's temperature sign will turn , display red, sound an alert, and shut off when the high temperature exceeds 60 degrees Celsius. This means that it has a highly potent display reminder function.
- ♫【Short Circuit Protection】Solar panel generator's safe charging design and cooling fan have a built-in fuse for overvoltage, overload, overcurrent, short circuit, under voltage, overheating, and short circuit protection.
Features:
1. High-Temperature Warning Indicator in LCD display
2. Show Battery in LCD display: Green means full , yellow means half , and red means low of your battery
4. /off indicator in LCD display: The symbol show green means working normal, showing red and faulty means without output.

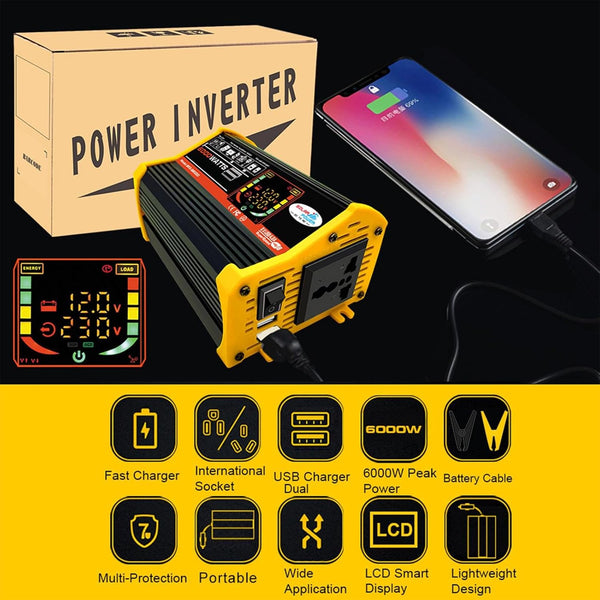

inverter 6000W parameters:
Input voltage: DC 10.5V~15V.
(When the battery voltage is lower than 10.5V, the inverter low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)
Output voltage: AC 110V /220V for your choice
The output frequency is 50Hz for the 220V model / 60Hz for the 110V model.
: 6000W
: 500W
Output waveform: modified sine wave

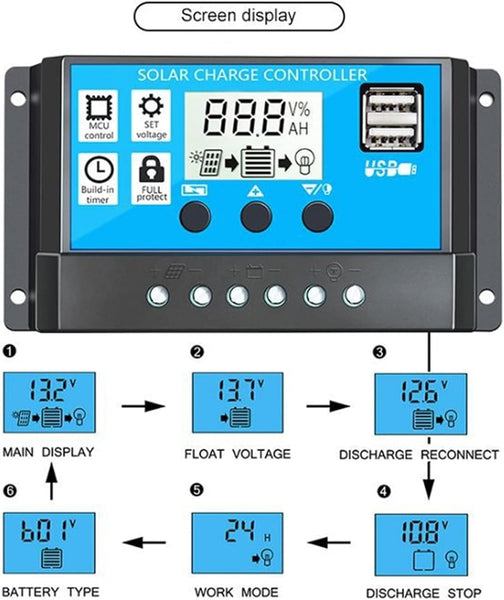

Solar controller parameters:
Charging current: 30A

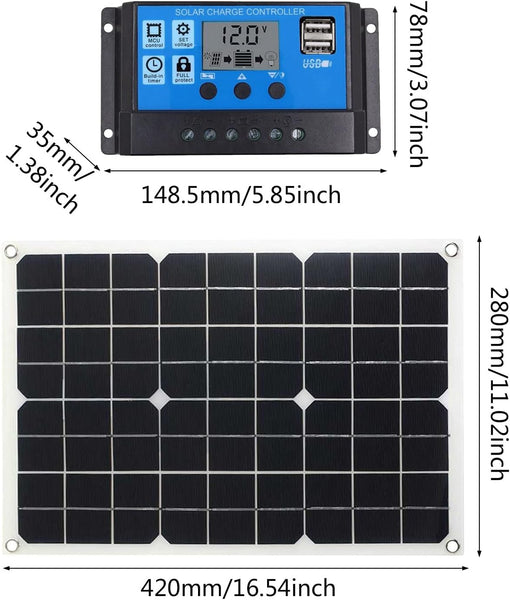

Product size: 148.5x78x35mm/5.82*3.07*1.37 inches
Voltage: DC 12V / 24V automatic intelligent conversion

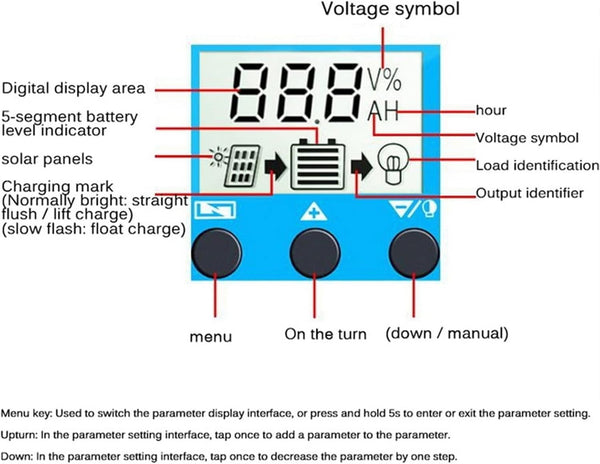

Display: LCD digital display
USB Charger Port: Dual USB 5V 2.1A
Working temperature: -35~+60
Maximum solar input: 12V battery, up to 23V
Float charge: 13.7V (default, adjustable)
Discharge stop: 10.7V (default, adjustable)
Discharge reconnection: 12.6V (default, adjustable)
Charging reconnect: 13V
USB output: 2 USB outputs, 5V/2.5A (MAX)
Solar panel 18W parameters:
: 18W 5%
Size: 420x280x2.5mm/16.53*11.02*0.98 inches
DC output: 12V/1.5A
USB output: 5V/1.7A
Weight: 0.7kg
Type: Monocrystalline Solar Panel
: aluminum substrate
Output accessories: DC + DC alligator clip

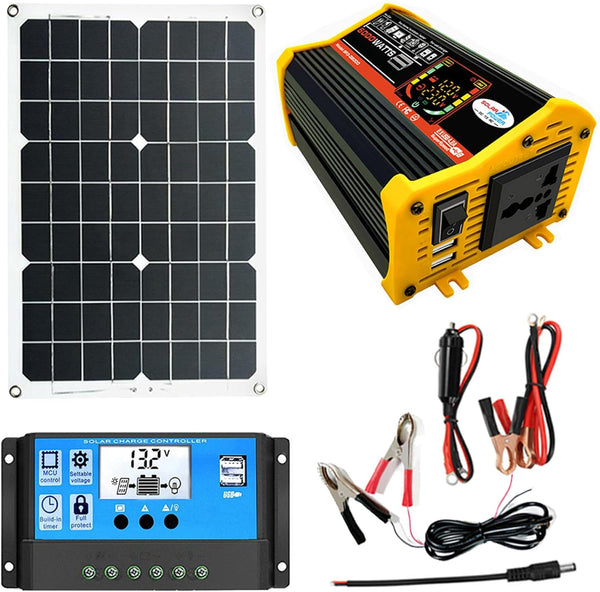

packing list:
1 x Inverter
2 x battery
1 x Lighter Plug
1 x User Manual
1 x Solar Panel 18W 18V
1 x Solar Charge Controller 30A 12V/24V
